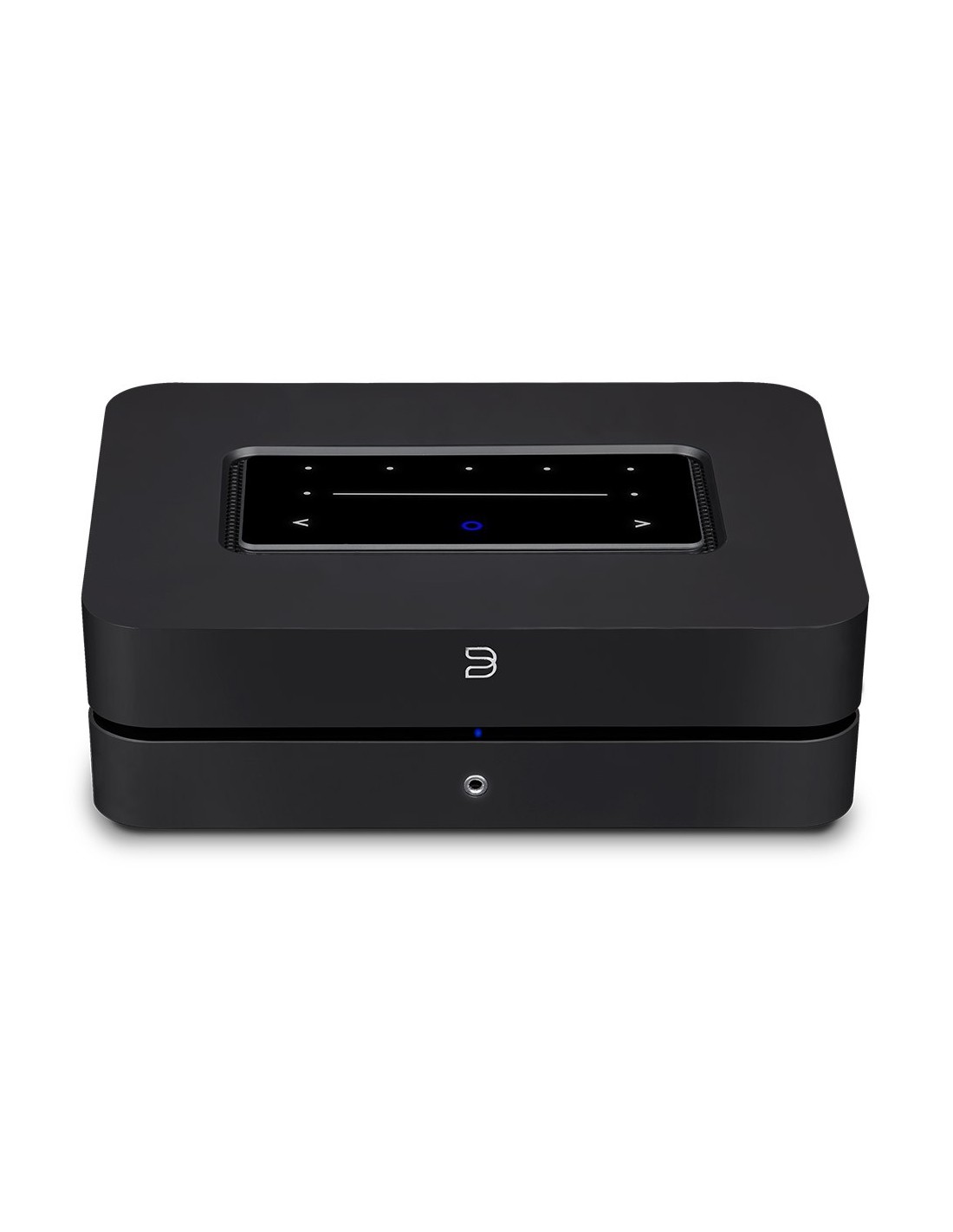

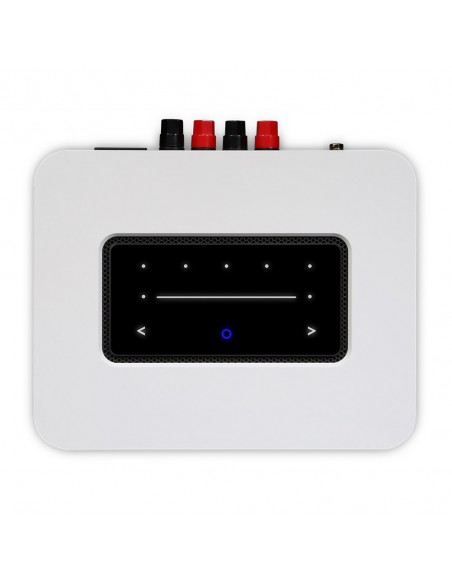

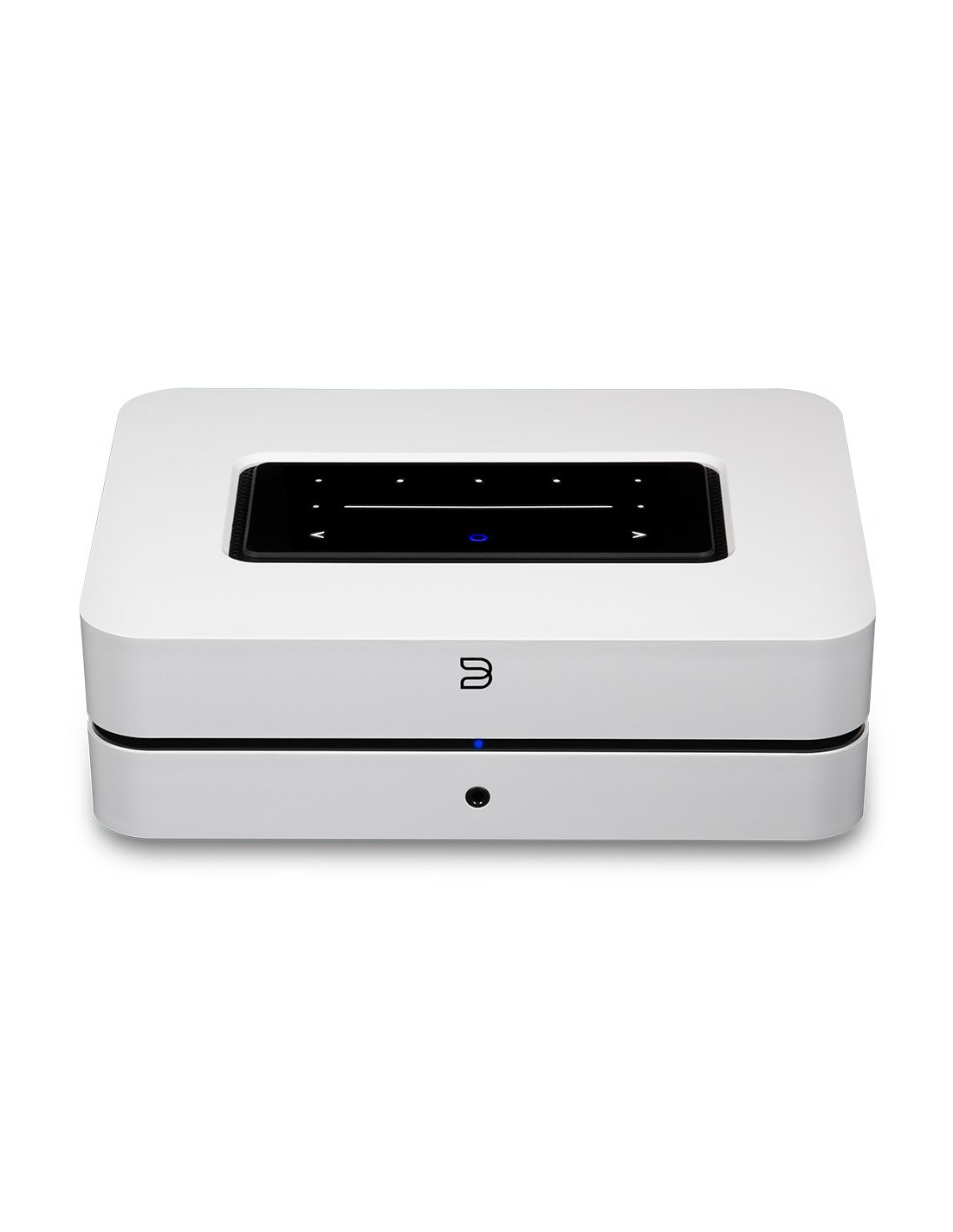

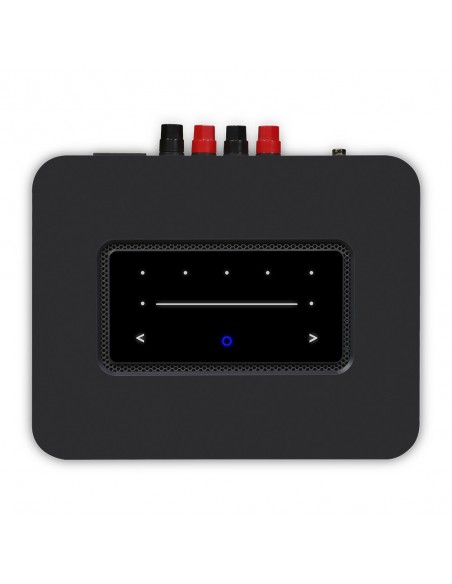

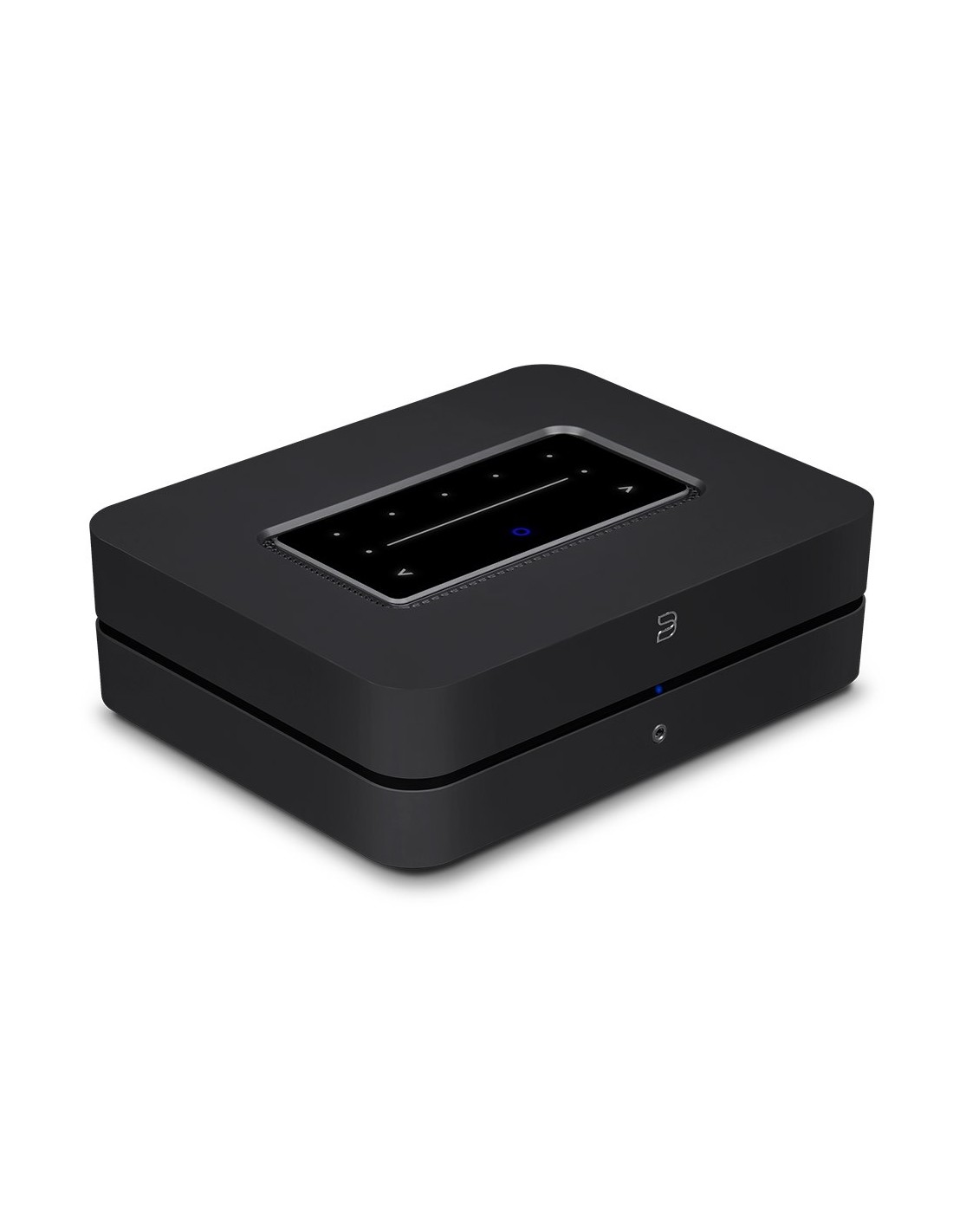

Powernode

AUDIO

Supported Audio File Formats

MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported Hi-Res Audio File Formats

FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Supported Multi-Channel Audio Formats

Dolby Digital

Processor

ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Native Sampling Rates

up to 192 kHz

Supported Network File Sharing

Server Messsage Block (SMB) up to 200,000 files

Native Sampling Rates

up to 192 kHz

Bit Depths

16 - 24

Performance

SNR -100dBA
THD+N, 0.008%

DAC

32-Bit, 384kHz
Differential Output design

Amplification

HybridDigital™

Rated Power Output

80W x 2 (8 Ohms)

IHF Dynamic Power

220W (4 Ohms) / 130W (8 Ohms)

SOFTWARE & INTEGRATIONS

Operating System

BluOS

App Controller Operating Systems

iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11

Network File Sharing

SMB up to 200,000 track index

Album Art Supported

JPG, PNG

Internet Radio

Click here

Music Services

Click here

Voice Control

Amazon Alexa Skills; Actions on Google

3rd-Party

AirPlay 2
Spotify Connect
Tidal Connect
Roon Ready

Control Systems

Control4, Crestron, URC, RTI, ELAN, Lutron

GENERAL

Finish

Black/White; Matte Satin Paint

Included Accessories

120V AC Power Cord
230V AC Power Cord
Ethernet Cable
TOSLINK Optical to 3.5mm Mini Adaptor x 2
Safety/Warranty Guide
Quick Setup Guide

Power Consumption

Storage Environment

-10°C to 50°C, 20% to 80% relative humidity

Operating Environment

'0°C to 40°C

Product Weight

1.78kg/3.9lbs

Product Dimensions

220 x 70 x 190 mm
8.7 x 2.75 x 7.5 in

Shipping Weight

3.15kg/6.94lbs

Shipping Dimensions

300 x 300 x 110 mm
11.8 x 11.8 x 4.33 in

USER INTERFACE & CONTROLS

Status Indicator

RGB LED x 2

Play/Pause Button

Touch LED

Volume Control Buttons

Touch Slider LED

Previous/Next Track Buttons

Touch LED

Preset Buttons

Touch LED x 5

Proximity Sensor

Yes

CONNECTIONS

Network

Wi-Fi 5 (802.11ac, 2.4/5GHz)
Ethernet RJ45, GigE 1000 Mbps

Audio Input

Mini TOSLINK/3.5mm Stereo combo x 2
HDMI eARC

Audio Output

5-Way Binding Post Speaker Terminals

Bluetooth

Bluetooth 5.0 aptX HD
Two-Way (transmit & receive)

Headphones

3.5mm Stereo Out
Wireless Bluetooth Out

Subwoofer

RCA
Network Pairing to PULSE SUB+

USB

Type-A Port for external drive connection (Fat32 or NTFS formatted)

IR Remote

IR Sensor Built In - front panel with IR Remote Learning
Universal 3-pin AC cord input (100-240AC)
