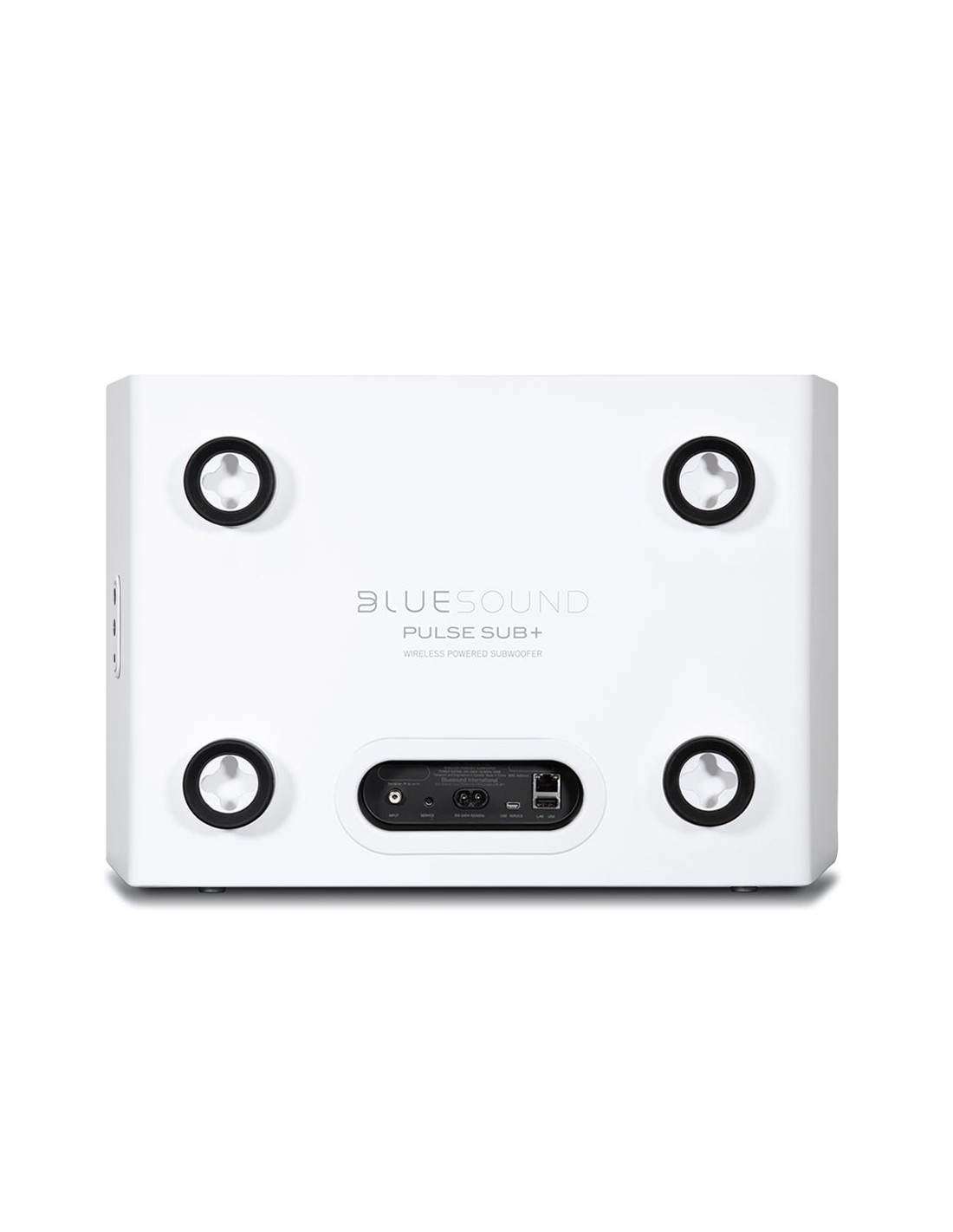

Pulse Sub+
Wireless Powered Subwoofer
SPECIFICATIONS
GENERAL
Status Indicator
Dimmable LED
Processor
ARM® Cortex™ -A9, 1GHz
Power
Universal bi-pin AC cord input, (100 – 240AC, 50/60Hz)
Wireless
WiFi 802.11ac, dual-band
Ethernet/LAN
Ethernet RJ45
Analog
Mono Low/Line Level Input
USB
Type A (upgrade only); Type B (mini) for service
Finish
Available in White or Black Matte
Included Accessories
120V AC Power Cord
230V AC Power Cord
Magnetic Rubber Feet x 2
Wall Mount Bracket
Safety/Warranty Guide
Quick Setup Guide
AMPLIFIER
Continuous
150W
Dynamic Peak
200W
Type
Smart DSP Amplifier, Class D
Power Consumption
0.5W Network Standby
FREQUENCY RESPONSE
On Axis @ 0°±2dB
22Hz - 150Hz
LF Cutoff -10dB
20Hz
ACOUSTIC DESIGN
Woofer (Nominal)
203mm / 8” Polypropylene cone, Rubber Surround
Crossover
50Hz - 150Hz, LFE setting
USER INTERFACE
Mobile Operating System
BluOS - Free Android and iOS App Available Online at Google Play and Apple App Store
Advanced Audio Controls
Volume +/-
Variable Crossover Frequency
Variable Phase
Physical Push Buttons
Volume +/-
Function Button
DIMENSIONS
Dimensions
457 x 300 x 146mm (W x H x D metric)
Weight
8.28kg/18.25lbs
(not including feet or wall bracket)
